PUMA 2600/500

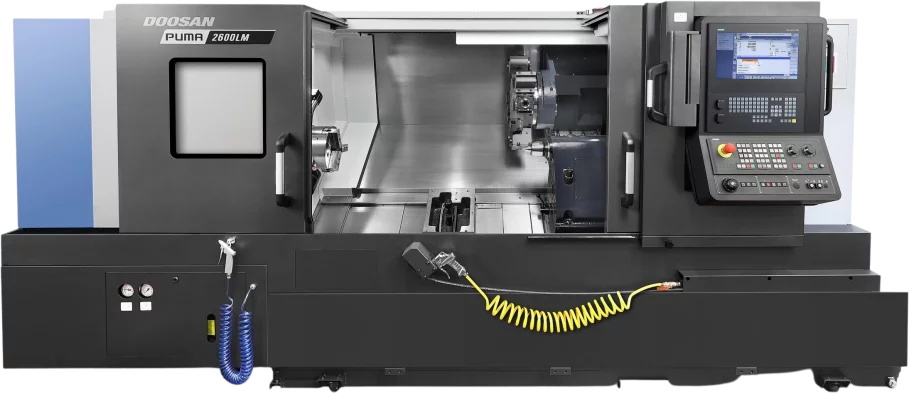

The PUMA 2600/500 is a horizontal turning center for machining a wide range of metal components. It provides a maximum turning diameter of 481 mm and a turning length of 550 mm, with a 254 mm chuck. A 12-station turret supports sequential machining operations. Box guideways and a rigid structure support stable cutting and a high-quality surface finish during roughing and finishing.
PUMA 2600/500
Technical specifications
| Chuck size | 254 mm |
|---|---|
| Max. turning diameter | 481 mm |
| Max. turning length | 550 mm |
| X-axis rapid traverse | 30 m/min |
| Z-axis rapid traverse | 30 m/min |
| X-axis travel | 260 mm |
| Z-axis travel | 590 mm |
| Max. spindle speed | 3500 rpm |
| Spindle power | 25 kW |
| Max. spindle torque | 386 Nm |
| Number of tools | 12 pcs |
Dimensions
| Dolžina | 3415 mm |
|---|---|
| Višina | 1900 mm |
| Širina | 1863 mm |
| Masa | 4900 kg |
BTS Company provides complete delivery of CNC machines – from safe transport to full commissioning at the customer's site. Delivery is carried out together with specialised transport partners, and on site we take care of professional unloading. An authorised service team carries out the installation and commissioning in line with the manufacturer's standards. After commissioning we provide operator training, technical support and regular maintenance for reliable and efficient operation of the machine.
