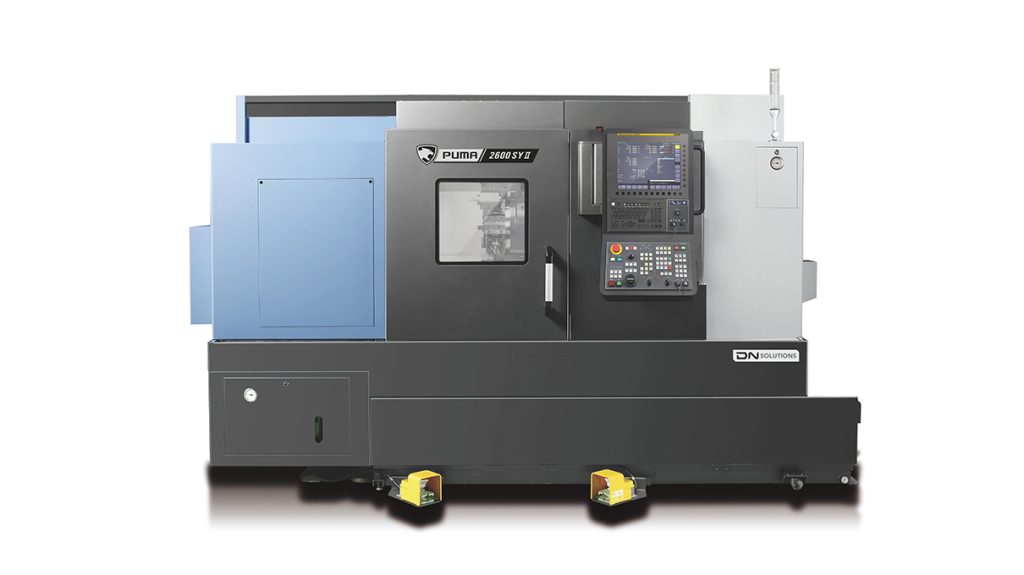

PUMA 2600Y II
The PUMA 2600Y II is a horizontal turning center for machining a wide range of metal components. It provides a maximum turning diameter of 376 mm and a turning length of 760 mm, with a 254 mm chuck. A 12-station turret supports sequential machining operations. Live tooling and 105 mm of Y-axis travel enable off-center milling and drilling in a single setup.
PUMA 2600Y II
Technical specifications
| Chuck size | 254 mm |
|---|---|
| Max. turning diameter | 376 mm |
| Max. turning length | 760 mm |
| X-axis rapid traverse | 30 m/min |
| Z-axis rapid traverse | 30 m/min |
| X-axis travel | 260 mm |
| Y-axis travel | 105 mm |
| Z-axis travel | 830 mm |
| Max. spindle speed | 4000 rpm |
| Spindle power | 22 kW |
| Max. spindle torque | 599 Nm |
| Number of tools | 12 pcs |
| Max. tool speed | 5000 rpm |
Dimensions
| Dolžina | 3560 mm |
|---|---|
| Višina | 2163 mm |
| Širina | 1945 mm |
| Masa | 6100 kg |
BTS Company provides complete delivery of CNC machines – from safe transport to full commissioning at the customer's site. Delivery is carried out together with specialised transport partners, and on site we take care of professional unloading. An authorised service team carries out the installation and commissioning in line with the manufacturer's standards. After commissioning we provide operator training, technical support and regular maintenance for reliable and efficient operation of the machine.
