PUMA 4100XLC

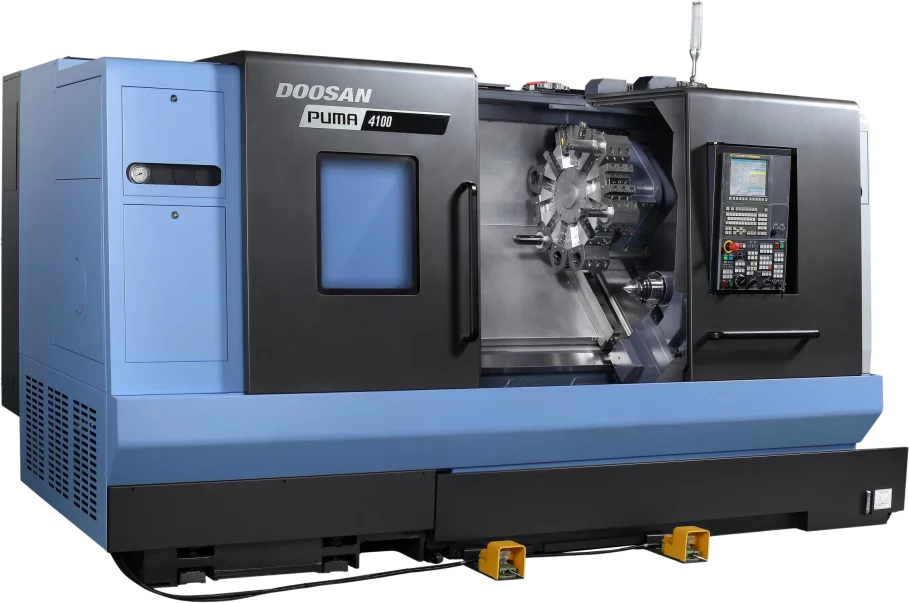

The PUMA 4100XLC is a horizontal turning center for machining large components and demanding cutting operations. It provides a maximum turning diameter of 550 mm and a turning length of 3080 mm, with a 533 mm chuck. The main spindle reaches speeds of up to 1500 rpm and delivers up to 37 kW, with up to 3280 Nm of torque. Box guideways and a rigid structure support stable cutting and a high-quality surface finish during roughing and finishing.
PUMA 4100XLC
Technical specifications
| Chuck size | 533 mm |
|---|---|
| Max. turning diameter | 550 mm |
| Max. turning length | 3080 mm |
| X-axis rapid traverse | 16 m/min |
| Z-axis rapid traverse | 20 m/min |
| X-axis travel | 352 mm |
| Z-axis travel | 3150 mm |
| Max. spindle speed | 1500 rpm |
| Spindle power | 37 kW |
| Spindle torque | 3280 Nm |
| Number of tools | 10 pcs |
Dimensions
| Dolžina | 7024 mm |
|---|---|
| Višina | 2335 mm |
| Širina | 2276 mm |
| Masa | 12900 kg |
BTS Company provides complete delivery of CNC machines – from safe transport to full commissioning at the customer's site. Delivery is carried out together with specialised transport partners, and on site we take care of professional unloading. An authorised service team carries out the installation and commissioning in line with the manufacturer's standards. After commissioning we provide operator training, technical support and regular maintenance for reliable and efficient operation of the machine.
