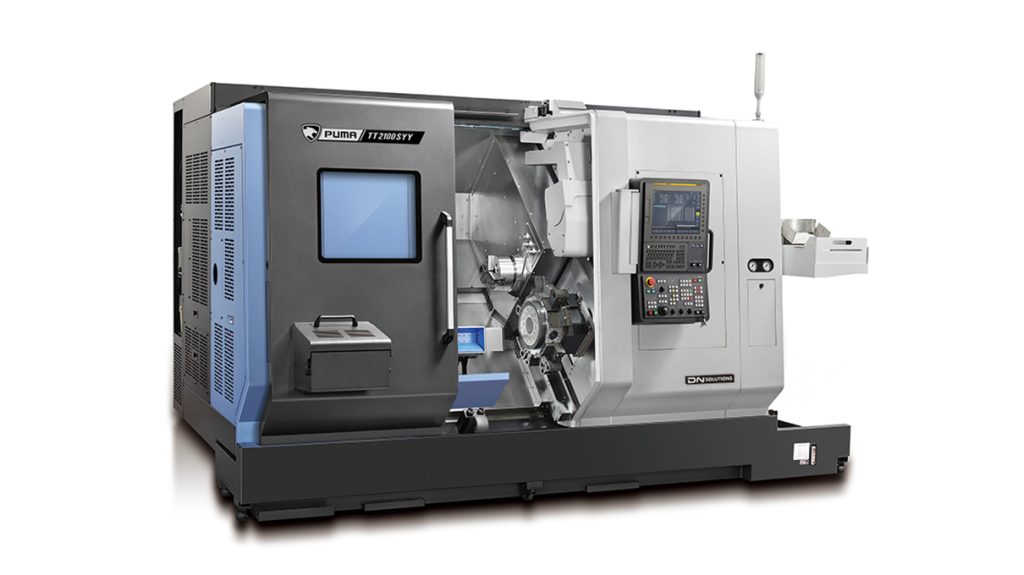

PUMA TT2100SYY
The PUMA TT2100SYY is a horizontal turning center with opposing twin spindles and twin turrets. It provides a maximum turning diameter of 230 mm and a turning length of 230 mm, with a 203 mm chuck. Live tooling enables milling and drilling, while twin Y-axes with 100 mm of travel support off-center machining. Simultaneous operations and automatic workpiece transfer between spindles shorten production time and reduce reclamping.
PUMA TT2100SYY
Technical specifications
| Chuck size | 203 mm |
|---|---|
| Max. turning diameter | 230/230 mm |
| Max. turning length | 230 mm |
| X-axis rapid traverse | 30 m/min |
| Z-axis rapid traverse | 40 m/min |
| X-axis travel | 165 mm |
| Y-axis travel | 100 mm |
| Z-axis travel | 700 mm |
| Max. spindle speed | 5000 rpm |
| Spindle power | 25 kW |
| Max. spindle torque | 223 Nm |
| Secondary spindle speed | 5000 rpm |
| Secondary spindle power | 25 kW |
| Number of tools | 12 pcs |
| Tool speed | 5000 rpm |
Dimensions
| Dolžina | 3880 mm |
|---|---|
| Višina | 2250 mm |
| Širina | 2360 mm |
| Masa | 9500 kg |
BTS Company provides complete delivery of CNC machines – from safe transport to full commissioning at the customer's site. Delivery is carried out together with specialised transport partners, and on site we take care of professional unloading. An authorised service team carries out the installation and commissioning in line with the manufacturer's standards. After commissioning we provide operator training, technical support and regular maintenance for reliable and efficient operation of the machine.
