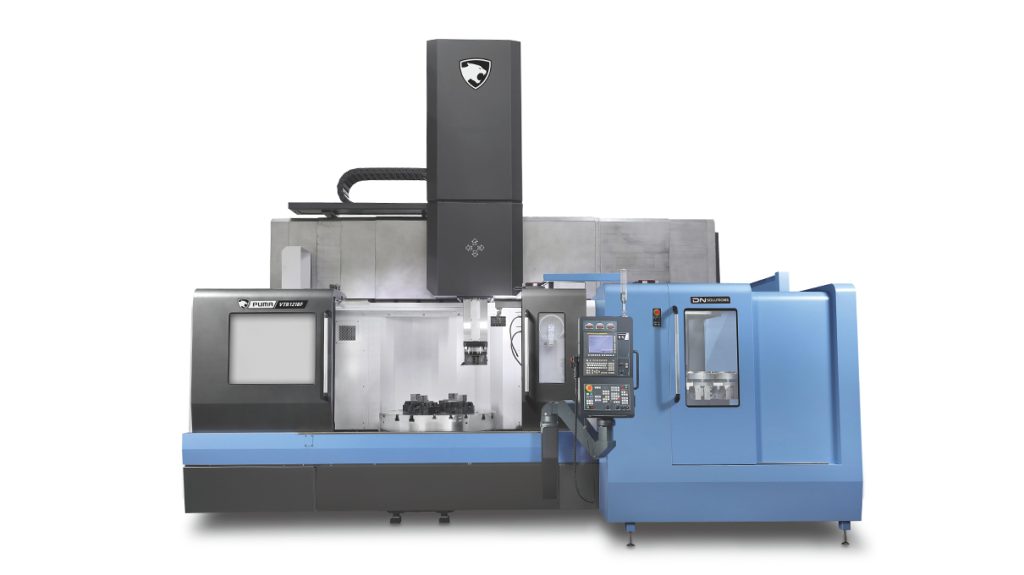

PUMA VTR1216FM
The PUMA VTR1216FM is a ram-type vertical turning center with a fixed crossrail for large, heavy workpieces. It provides a maximum turning diameter of 1600 mm and a turning length of 950 mm. The main spindle reaches speeds of up to 400 rpm and delivers up to 45 kW, with up to 20557 Nm of torque. Live tooling adds milling and drilling capabilities, reducing the need to reclamp large workpieces.
PUMA VTR1216FM
Technical specifications
| Max. turning diameter | 1600 mm |
|---|---|
| Max. turning length | 950 mm |
| X-axis rapid traverse | 12 m/min |
| Z-axis rapid traverse | 10 m/min |
| X-axis travel | 1700 mm |
| Z-axis travel | 900 mm |
| Max. spindle speed | 400 rpm |
| Spindle power | 45 kW |
| Max. spindle torque | 20557 Nm |
Dimensions
| Dolžina | 5590 mm |
|---|---|
| Višina | 5065 mm |
| Širina | 4066 mm |
| Masa | 28000 kg |
BTS Company provides complete delivery of CNC machines – from safe transport to full commissioning at the customer's site. Delivery is carried out together with specialised transport partners, and on site we take care of professional unloading. An authorised service team carries out the installation and commissioning in line with the manufacturer's standards. After commissioning we provide operator training, technical support and regular maintenance for reliable and efficient operation of the machine.
