PUMA VTR2025

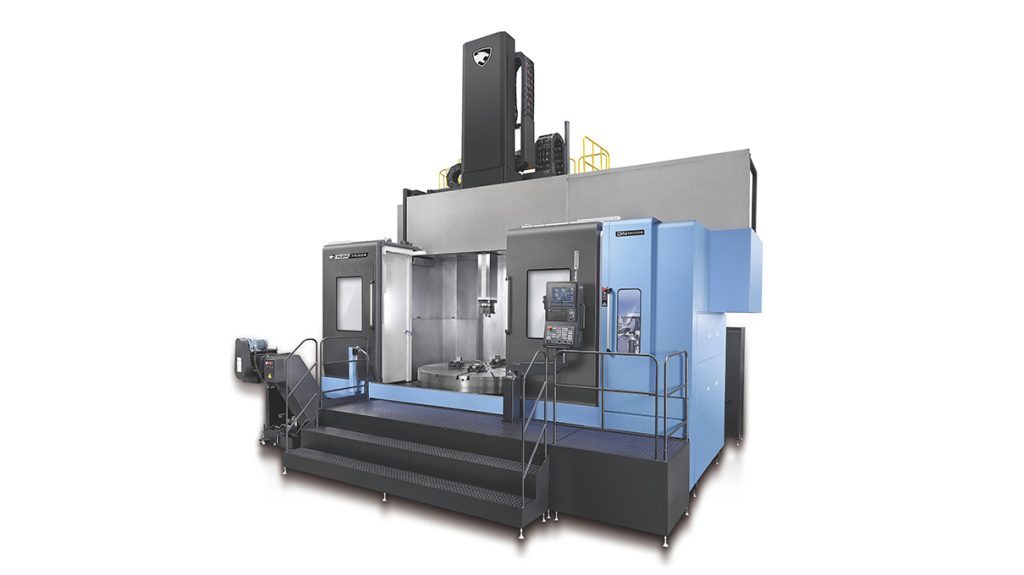

The PUMA VTR2025 is a ram-type vertical turning center with a height-adjustable crossrail for large, heavy workpieces. It provides a maximum turning diameter of 2500 mm and a turning length of 2000 mm. The main spindle reaches speeds of up to 200 rpm and delivers up to 75 kW, with up to 46720 Nm of torque. A wide column and one-piece bed provide rigidity and vibration damping during heavy-duty cutting.
PUMA VTR2025
Technical specifications
| Max. turning diameter | 2500 mm |
|---|---|
| Max. turning length | 2000 mm |
| X-axis rapid traverse | 10 m/min |
| Z-axis rapid traverse | 10 m/min |
| X-axis travel | 2640 mm |
| Z-axis travel | 1400 mm |
| Max. spindle speed | 200 rpm |
| Spindle power | 75 kW |
| Max. spindle torque | 46720 Nm |
Dimensions
| Dolžina | 7296 mm |
|---|---|
| Višina | 7600 mm |
| Širina | 4836 mm |
| Masa | 55000 kg |
BTS Company provides complete delivery of CNC machines – from safe transport to full commissioning at the customer's site. Delivery is carried out together with specialised transport partners, and on site we take care of professional unloading. An authorised service team carries out the installation and commissioning in line with the manufacturer's standards. After commissioning we provide operator training, technical support and regular maintenance for reliable and efficient operation of the machine.
